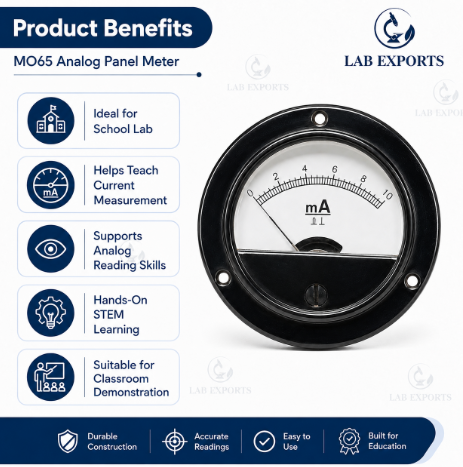

MO65 Analog Panel Meter Manufacturer,Supplier and Exporter in India
Product Code : SCL-LM-11289
The MO65 Analog Panel Meter provides direct visual readings through a pointer and graduated dial. Its analog display allows students and operators to observe both the measured value and the direction or rate of pointer movement during circuit experiments.
The meter is designed for mounting on compatible laboratory panels, demonstration boards and electrical training equipment. The exact measuring quantity, scale range and movement configuration must be selected according to the intended circuit. Buyers should confirm these electrical parameters before ordering.
Key Features
65 mm meter format: Provides a clearly visible analog scale for instructional and panel-based applications.
Pointer-based indication: Displays electrical changes continuously rather than as periodically updated digital values.
Multiple configuration potential: The required current or voltage range can be specified subject to product availability.
Panel integration: Suitable for compatible electrical trainers, demonstration boards and laboratory control panels.
Educational value: Helps learners understand scale reading, pointer deflection and changes in electrical quantities.
Simple operation: Requires no separate display programming or digital menu navigation.
Clear scale presentation: Supports observation during individual practical work and teacher demonstrations.
Technical Specifications
|
Specification |
Detail |
|
Product name |
MO65 Analog Panel Meter |
|
Meter format |
65 mm |
|
Display type |
Analog pointer with graduated scale |
Applications and Uses
Measuring the specified electrical quantity in compatible laboratory circuits
Installing in school and college physics experiment panels
Demonstrating pointer deflection and analog scale interpretation
Supporting voltage-current relationship experiments
Monitoring electrical trainer and demonstration-board outputs
Teaching measurement range, scale divisions and reading errors
Using in vocational, technical and STEM electrical training setups
How to Use the MO65 Analog Panel Meter
Confirm the meter’s measuring quantity, range and AC or DC rating.
Inspect the scale, pointer, terminals and enclosure before connection.
Mount the meter securely in the compatible panel or training setup.
Ensure that the circuit supply is switched off.
Connect the meter according to its terminal markings and intended function.
For a current meter, connect it in series. For a voltage meter, connect it in parallel.
Select a circuit value that remains within the meter’s rated range.
Switch on the supply and read the pointer at eye level to reduce parallax error.
Switch off the circuit before disconnecting or changing connections.
Safety note: Never apply an unknown voltage or current to the meter. Incorrect polarity, wiring or over-range input may damage the movement. Installation should be supervised by a qualified teacher, technician or laboratory instructor.
Care & Maintenance
Keep the scale window clean with a soft, dry cloth.
Store the meter away from moisture, dust, vibration and strong magnetic fields.
Do not press, bend or manually move the pointer.
Check zero position and terminal security before practical sessions.
Why Choose Lab Exports?
Lab Exports manufactures and exports scientific laboratory instruments, experiment setups, science kits, mathematics kits, didactic models and STEM equipment. The company supplies equipment for schools, colleges, universities, vocational institutions and laboratory procurement projects. Product configurations can be reviewed against institutional requirements before supply. Buyers should provide the required electrical range and meter function when requesting a quotation.
Frequently Asked Questions
What is an MO65 Analog Panel Meter used for?
It is used to display a specified electrical quantity on an analog scale in laboratory panels, teaching circuits and electrical training equipment.
Does the MO65 meter measure voltage or current?
The MO65 format may be configured for different electrical measurements. The required voltage or current function, range and AC/DC type must be confirmed when ordering.
What does 65 mm mean in the product name?
It identifies the meter’s nominal panel-display format. Final mounting and cut-out dimensions should be confirmed before panel fabrication.
Can the MO65 Analog Panel Meter be used in schools?
Yes. It is suitable for supervised physics and electrical laboratory activities where students learn circuit measurement and analog scale reading.
Does an analog panel meter require a separate power supply?
This depends on its measuring movement and circuit configuration. Confirm the selected model’s wiring and power requirements before installation.
How can parallax error be reduced while reading the meter?
Observe the pointer directly from the front at eye level. Reading the scale from an angle may produce an incorrect value.
Request the required range and electrical configuration from Lab Exports, or browse the laboratory meters range, electrical and electronics laboratory equipment and complete physics lab equipment range.
