Alnico U-Shaped Magnet
Product Code : EL-M-10304
Quick answer: The Alnico U-shaped magnet is a strong, long-lasting magnet with an 18 mm gap between its poles, supplied with a keeper. The fixed gap gives a consistent field region for placing wires, coils or compasses in experiments. Sizes are 50, 75, 100 and 150 mm long with an 11 x 8 mm section. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Attribute | Detail |
|---|---|
| Material | Alnico |
| Strength | High, long-lasting magnetism |
| Centre gap | 18 mm |
| Sizes (L x W x H) | 50 x 11 x 8, 75 x 11 x 8, 100 x 11 x 8 and 150 x 11 x 8 mm |
| Supplied as | Single magnet, with keeper |
Uses
The 18 mm pole gap is the working space of this magnet: a straight wire, a small coil or a plotting compass fits between the limbs, where the field is strongest and most uniform. Because the gap is the same across all four sizes, results can be compared between magnets of different length, and Alnico keeps the field steady over years of use.
It is used to show the force on a current-carrying conductor, to induce a current by moving a coil or wire through the gap, to map the field between the limbs with iron filings, and to compare its strength with chrome steel magnets of similar size.
Key features
- Alnico holds its magnetism longer than chrome steel U magnets.
- 18 mm centre gap, the same on all sizes, for consistent field experiments.
- Four lengths: 50, 75, 100 and 150 mm.
- Keeper supplied to protect strength between uses.
- Suits both school practicals and college demonstrations.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Alnico U-shaped magnet at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Magnetism products

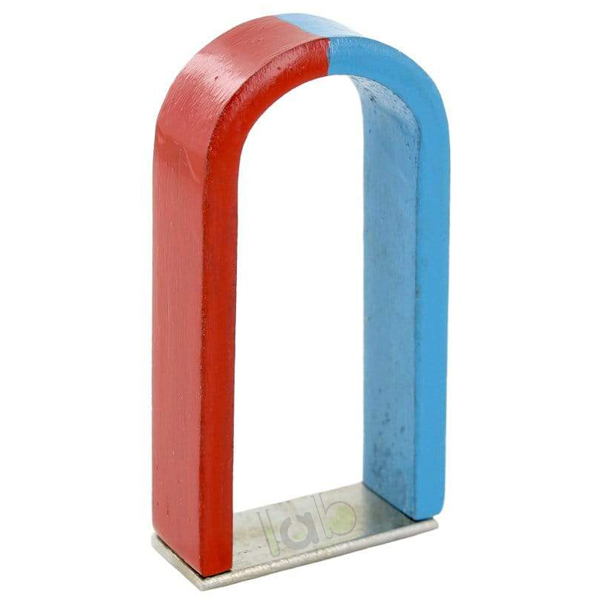

- U-Shaped Magnet, Chrome Steel (EL-M-10303)
- Ferrite Discs (EL-M-10305)
- Alnico Horseshoe Magnet (EL-M-10302)

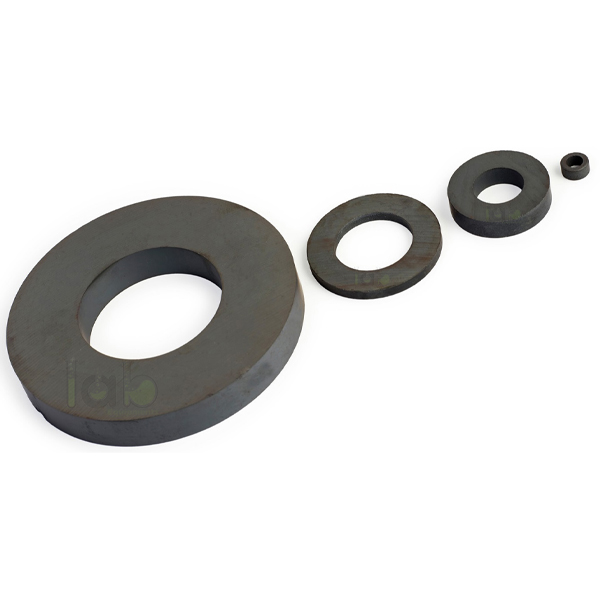

- Ferrite Rings (EL-M-10306)

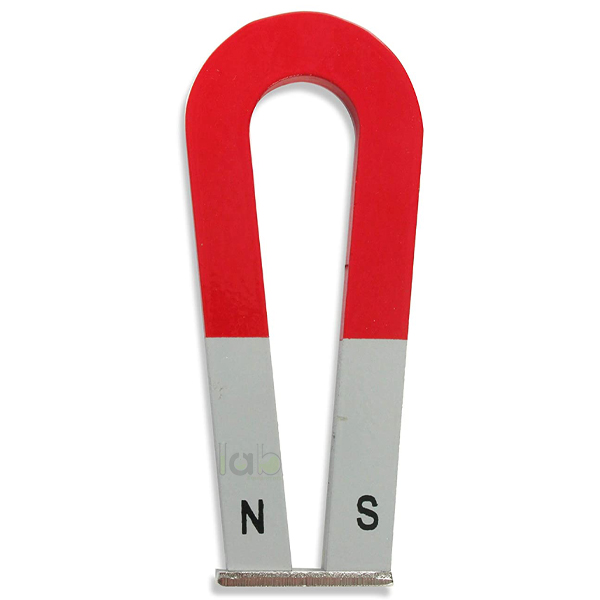

- Horseshoe Magnet Chrome Steel (EL-M-10301)
- Neodymium Discs (EL-M-10307)
The full range is in the Magnetism section of the Physics Lab range.
Frequently asked questions
What is the pole gap of the Alnico U-shaped magnet?
The centre gap between the poles is 18 mm on all four sizes.
Which experiments use a U-shaped magnet with a fixed gap?
Force on a current-carrying conductor, electromagnetic induction with a moving wire or coil, and field mapping between the poles.
What is the price of the Alnico U-shaped magnet?
Prices are not published on the website. Add the Alnico U-shaped magnet to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-M-10304 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Alnico U-shaped magnet?
Yes. Lab Exports manufactures the Alnico U-shaped magnet at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-M-10304.
