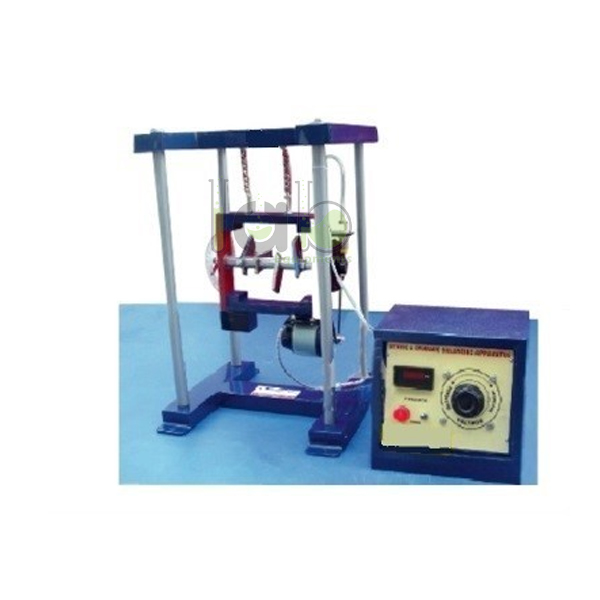

Static Dynamic Balancing Apparatus
Product Code : EL-TOML-11019
Quick answer: The static and dynamic balancing apparatus is used to balance rotating masses on a shaft, first statically and then dynamically, and to show the vibration caused by unbalance. It has a stainless steel shaft, four stainless steel weights with different eccentric masses and a variable speed FHP motor. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Component | Specification |
|---|---|
| Rotating shaft | Stainless steel |
| Balancing weights | 4 nos., stainless steel, with different sized eccentric masses |
| Drive motor | FHP motor, variable speed, with speed controller |
| Scales | Angular and longitudinal scales for positioning the weights |
| Power requirement | 0.5 kW, 220 V, single phase |
| Structure | Painted frame |
How the balancing experiment is done
A rotating mass whose centre of gravity is off the shaft axis sets up a centrifugal force m x r x omega^2 that shakes the bearings and frame. Static balance means the shaft stays at rest in any angular position, which requires the vector sum of m x r to be zero. Dynamic balance also needs the sum of the couples, m x r x l, about any plane to be zero, so that the shaft runs without rocking.
Students first find the m x r value of each weight by a static test, then draw the force and couple polygons to fix the angular and axial positions of the weights. The positions are set on the angular and longitudinal scales, and running the shaft at speed with the motor shows whether the system is truly balanced.
- Mount the eccentric weights on the stainless steel shaft.
- With the motor off, find each weight's static moment and check static balance by turning the shaft to different positions.
- Work out the angular and axial positions for dynamic balance from the couple polygon.
- Set the weights to those positions using the angular and longitudinal scales.
- Run the shaft at increasing speed with the controller and check whether the vibration has gone.
Key features
- One apparatus for both static and dynamic balancing experiments
- Stainless steel rotating shaft
- Four stainless steel weights with different sized eccentric masses to create varying unbalance
- Variable speed FHP motor with speed controller for dynamic tests
- Angular and longitudinal scales for setting weight positions
- Runs on a 0.5 kW, 220 V single-phase supply
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the balancing apparatus at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Theory of Machine Lab products

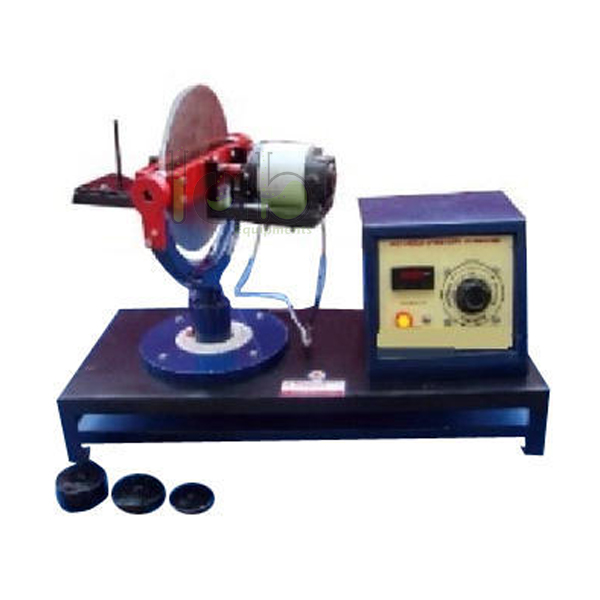

- Motorised Gyroscope Apparatus (EL-TOML-11020)
