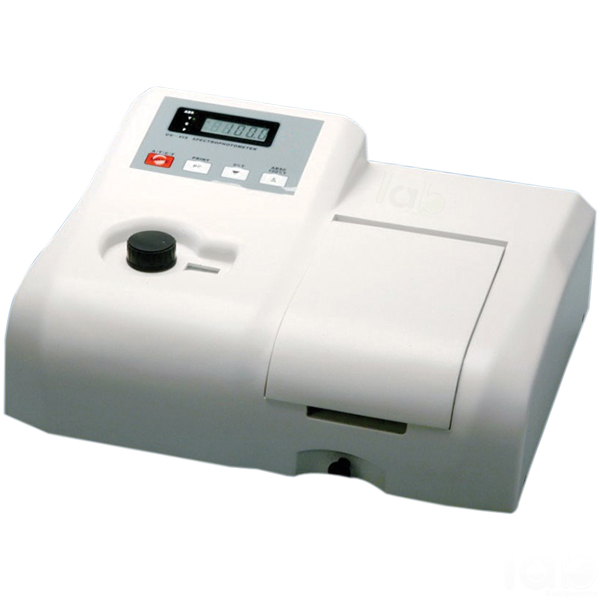

Single Beam Microprocessor UV-VIS Spectrophotometer
Product Code : EL-LI-10790
The Single Beam Microprocessor UV-VIS Spectrophotometer from Lab Exports offers high wavelength precision across a 195 to 1000nm range, with manual wavelength calibration and an RS-232 computer interface.
Specifications
| Wavelength Range | 195 to 1000nm |
| Spectral Bandwidth | 2nm |
| Accuracy | ±0.5nm |
| Repeatability | ±0.3nm |
| Resolution | 0.1nm |
| Stray Light | Less than 0.1% Abs at 320nm |
| Readability | ±1 count |
| Light Source | Tungsten halogen lamp and deuterium lamp (D2) |
| Detector | Wide range silicon photodiode |
| Optics | Complete mirror optics with 1200 grooves/mm grating |
| Sample Holder | 4 position adjustable holder for 10mm path length cuvettes |
| Interface | RS-232C and printer interface |
| Data Readout | Single line LCD display |
| Keyboard | 4 keys, soft touch membrane type |
| Power | 230V ±10%, 50Hz AC |
| Dimensions | 420 x 350 x 240mm (l x b x h) |
| Weight | 10kg (approx.) |
| Cuvettes Provided | 2 quartz and 4 glass cuvettes |
Key Features
- High wavelength precision across a 195 to 1000nm range
- Compact and good-looking design
- Highly accurate and stable performance
- 4 position cuvette holder for flexible sample measurement
- RS-232C computer interface for data connectivity
- Automatic measurement of concentration, %transmission and absorbance
- Software included
Applications
The Single Beam Microprocessor UV-VIS Spectrophotometer is used for measuring absorbance, transmission and concentration in chemistry and analytical laboratory work.
Why Choose Lab Exports
Lab Exports is a trusted manufacturer and exporter of laboratory equipment including a complete range of Laboratory Instruments for laboratories and institutions worldwide. Every product is built for reliability and long-term durability, backed by responsive after-sales support. As a UV-VIS spectrophotometer and laboratory analytical instruments exporter from India, we regularly ship to laboratories in South Africa, Ethiopia, and Tanzania, and across the wider Africa region.
Related Products in Laboratory Instruments
- Melting Point Apparatus, Digital
- Moisture Analyser
- Laboratory Instruments
- Laboratory Equipment
- Request a Quote
Frequently Asked Questions
Q1. What is the wavelength range?
195 to 1000nm.
Q2. What cuvettes are provided?
2 quartz and 4 glass cuvettes, for 10mm path length.
Q3. What connectivity does it offer?
An RS-232C computer interface plus printer interface.
Q4. What light sources does it use?
A tungsten halogen lamp and a deuterium (D2) lamp.
Q5. What is the accuracy of this spectrophotometer?
±0.5nm.
Request a Quote
For pricing, specifications or export documentation on the Single Beam Microprocessor UV-VIS Spectrophotometer, contact Lab Exports for a detailed quotation.
